Customized Solutions For Simple Cookie Wire Cut Cookie Filled
Cookies
The production of high-quality cookie and biscuit products relies
on high-quality processing machinery and technologies. SAIMAI can
supply a complete new production line or integrate it into an
existing plant to upgrade and increase capacity.
The cookies can be deposited either directly onto an oven band or
onto baking trays on a conveyor. SAIMAI’s indirect heated oven
which has air circulation system is suitable for baking cookie,
which can ensure every biscuit is even colored and has perfect
texture. The working parameters can be adjusted while machines are
running, to further reduce stoppages. When running at steady state
our ovens require no operator presence, and the efficient
insulation system saves energy.
The line can be equipped with:
Cookie Depositor
Online Cookie Depositor
Tunnel Oven
Multi-layer Cooling Belt Conveyor
Chocolate Coating Machine (optional)
Spiral Cooler(optional)
Packaging machines
On-line cookie depositor—wire cut/ dropping
1. Working width: 1.2M
2. The reciprocating moving head Depositor is for deposited or
wire-cut one color cookies and soft centre cookies, with the
addition of one hopper for the filling.
3. The depositing head is consisting of a hopper with a pair of
grooved feeding rollers that leads the dough to the individual
positive displacement pumps, one for each outlet, at constant
pressure, allowing a very accurate dosing, without any variation in
weight and volume of the product.
4.The machine can work as Depositor, with vertical and horizontal
motion of the head to follow the baking belt and avoiding product
tails, as Wire-cutter, with head fixed over the baking belt, dough
feeding by means of the pump system, cutting of the product by
means of a wire fitted on a oscillating frame to feed a row of
products at a time on the baking belt, as Continuous Extruder, with
fixed head, feeding rollers and pumps rotating continuously giving
one set of dough lanes to be cut by a guillotine before or after
baking depending on the product.
5. Machine designed to be disassembled and cleaned quickly and
accurately, with easily changeable accessories (wire-cut templates,
nozzles and rotating nozzles).
Machine controlled by Operator Panel “Touch screen” for control and
programming of machine parameters and synchronization between
machine and oven.
Baking
State of the tunnel ovens ensures perfectly shaped, colored and
textured cookies are produced every time for each recipe. Many
years of experience in the line of high capacity cookie and biscuit
production has allowed us to develop ovens that precisely control
heat, moisture, and pressure for perfect baking results.
Conveyors
1. PLC systems can monitor faults and showing alarm information in
English according to the customer’s requirement. It has an open
communication interface for the internet and is free to connect
with other controlled systems and computer systems.
2. Incorporated the design of Europe and Japan into our equipment.
Maximum reduce the cost of labor and realize real automation.

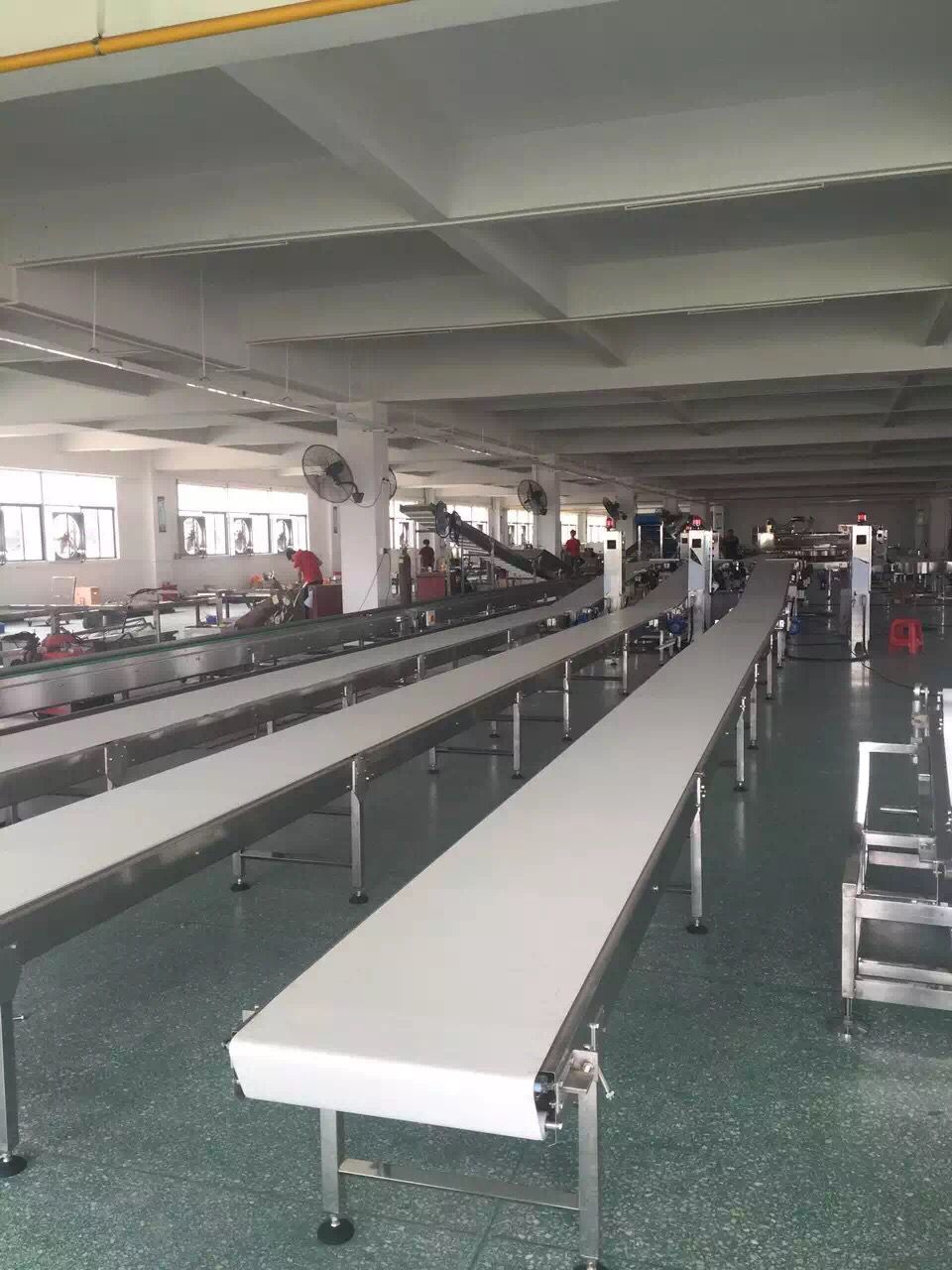

Our worshop:
Packaging and delivery :
